Private Mode

What is Private Mode?

Private Mode allows organizations with strict data residency requirements to deploy Baz while maintaining full control over their source code storage. Instead of persisting repositories on Baz's infrastructure, you deploy a single FSS pod in your environment that provides Baz temporary access to perform code analysis.

While code is queried and processed on Baz infrastructure during analysis, it is handled transiently and immediately wiped once the review process completes or errors out. No source code is persisted on Baz servers.

How It Works

In Baz's standard deployment, the FSS runs on Baz infrastructure. With Private Mode, you deploy this same service in your own environment instead.

Standard Deployment: Repository → FSS (Baz Infrastructure) → Analysis

Private Mode: Repository → FSS (Your Infrastructure) → Analysis

The FSS acts as a filesystem operator for Baz, providing temporary access to diffs, files, and directories across commits. Your repositories remain in your infrastructure, and the FSS gives Baz controlled, temporary access only when needed for code review.

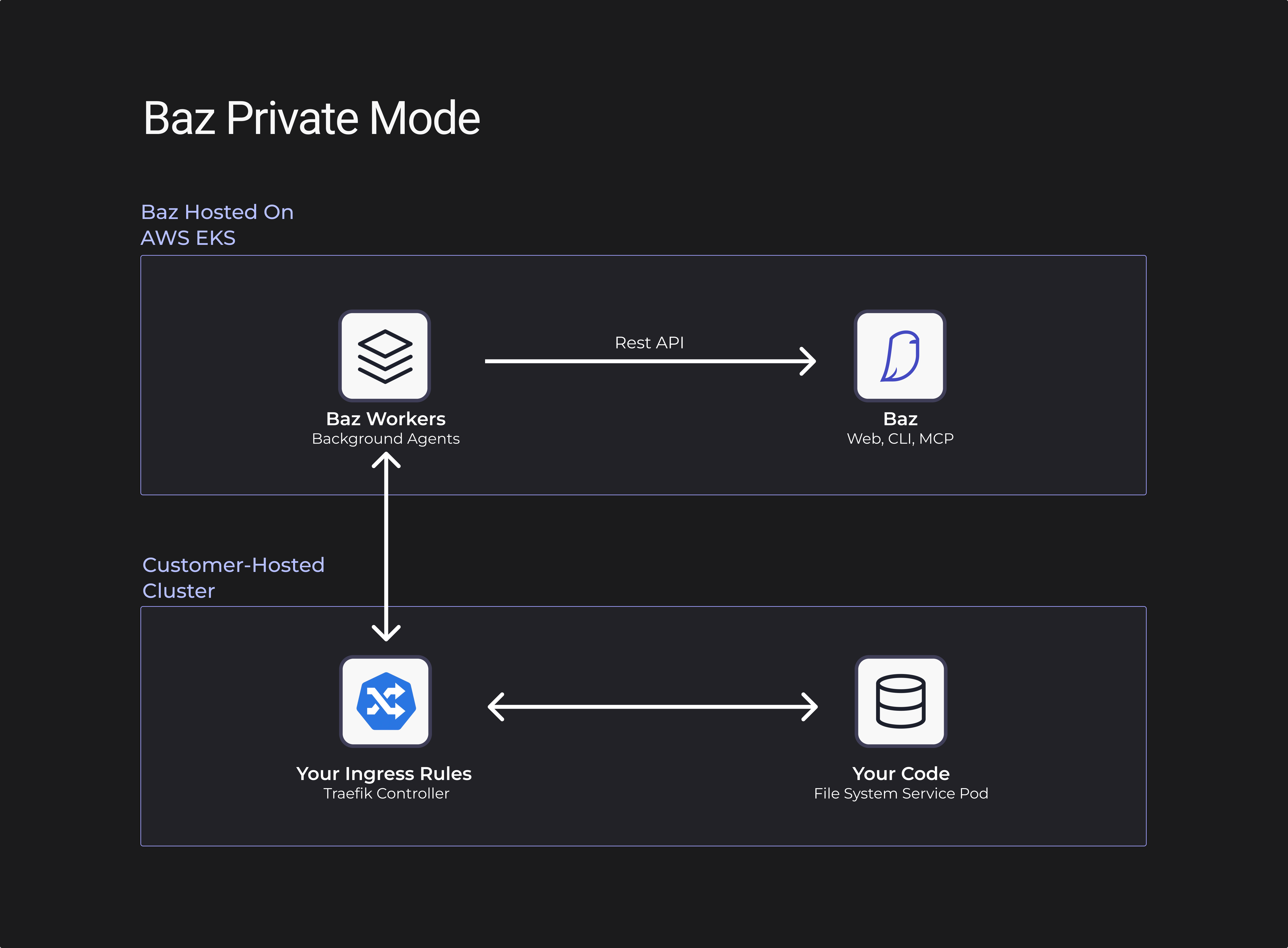

Architecture

Key Components:

• Ingress Controller: Routes traffic from a customer-configured subdomain (e.g., https://baz.acme.com or https://acme.com/baz) to the FSS pod
• FSS Pod: Provides temporary filesystem access to repositories for Baz analysis
• Baz Infrastructure: Connects via REST API with IP whitelist, SSL/TLS, and API key authentication

Network Requirements

The FSS pod requires outbound connectivity to Baz's infrastructure. You'll need to allowlist the following 3 public IP addresses:

• 18.190.165.140
• 3.20.124.148
• 3.12.220.91

Setup Guide

Setting up Private Mode requires coordination with Baz support. The process ensures secure integration between your infrastructure and Baz's platform.

Prerequisites

Before beginning setup, ensure you have:

• Kubernetes cluster running on AWS EKS
• Helm 3.x installed
• Ingress controller configured (e.g., Traefik, NGINX)
• Ability to configure a subdomain or URL prefix for FSS access
• AWS account ID for ECR image access
• Network policies allowing inbound HTTPS from Baz IP addresses
• A GitHub Personal Access Token (GH PAT) with read access to the repositories you wish to integrate. It does not matter if the token is a classic token or a fine grained token - it needs read permissions for contents. GitHub docs

Step 1: Contact Baz Support

Sign up to Baz, and then reach out to support@baz.co (or your shared Slack channel if one exists) to initiate Private Mode setup. Baz support will provide:

• API token for FSS pod authentication
• Helm chart for FSS deployment
• ECR repository access for your AWS account

Step 2: Deploy FSS with Helm

Install the FSS pod in your Kubernetes cluster using the Helm chart from GitHub. You will need to create a values.yml file with at least the following keys:

image:
  repository:  497250501322.dkr.ecr.us-east-2.amazonaws.com/baz-fss-private-mode
  tag:  0.1.0  # Replace with latest - as given from baz support

service:
  type: ClusterIP
  port: 3000

env: private

githubPat: # required (or set via secret). Needs to have the permissions to the repos you intend to integrate
privateModeKey: # required (or set via secret). Supplied by baz support

There are more configuration options in values.yml if you wish to configure secrets etc. Once set, deploy the helm chart:

helm repo add baz https://baz-scm.github.io/helm-charts
helm repo update

helm install baz-fss baz/private-mode \
  --namespace baz-system \
  --create-namespace \
  --set apiToken=YOUR_API_TOKEN

Step 3: Configure Ingress Route

Set up an ingress route that makes the FSS accessible from either:

• A subdomain: https://baz.acme.com
• A URL prefix: https://acme.com/baz

The ingress must allow inbound traffic from Baz's 3 public IP addresses as noted above.

Example Traefik IngressRoute:

apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: baz-fss
  namespace: baz-system
spec:
  entryPoints:
    - websecure
  routes:
    - match: Host(`baz.acme.com`)
      kind: Rule
      services:
        - name: baz-fss
          port: 8080
  tls:
    certResolver: letsencrypt

Step 4: Create Baz Account and Organization

1. Sign up at https://baz.co/login
2. Create your user account
3. Set up your organization

Step 5: Share Integration Details

Provide the FSS endpoint URL (e.g., https://baz.acme.com) to baz support to validate the traffic works from their end. Baz support will:

1. Configure the FSS integration for your organization
2. Test connectivity and authentication
3. Verify the setup is working as expected
4. Notify you when complete

Step 6: Connect Your Repositories

Once Baz support confirms the integration is ready:

1. Go back to baz.co/login, and follow the standard Baz integration flow for GitHub or GitLab
2. All repository storage and filesystem operations will automatically use your FSS pod. Feel free to follow the container logs of the container on your end.
3. Begin using Baz as normal with full Private Mode data residency

Security Considerations

Data Residency: Source code is stored exclusively in your infrastructure. Baz accesses code transiently for analysis and immediately wipes it after processing.

Authentication: FSS communicates with Baz infrastructure using REST API with multiple security layers:

• IP whitelist (only Baz's public IPs can connect)
• SSL/TLS encryption
• API key authentication

Network Isolation: The FSS operates behind your ingress controller with strict network policies. Only authorized Baz IP addresses can reach the service.

Audit Logging: All FSS operations are logged within your environment for compliance and security monitoring.

Support

All Private Mode setups require assistance from Baz support. For any issues, questions, or to initiate setup:

• Email: support@baz.co
• Slack: Your shared channel (if one exists)

Our team will guide you through the entire setup process and help troubleshoot any issues that arise.

FAQ

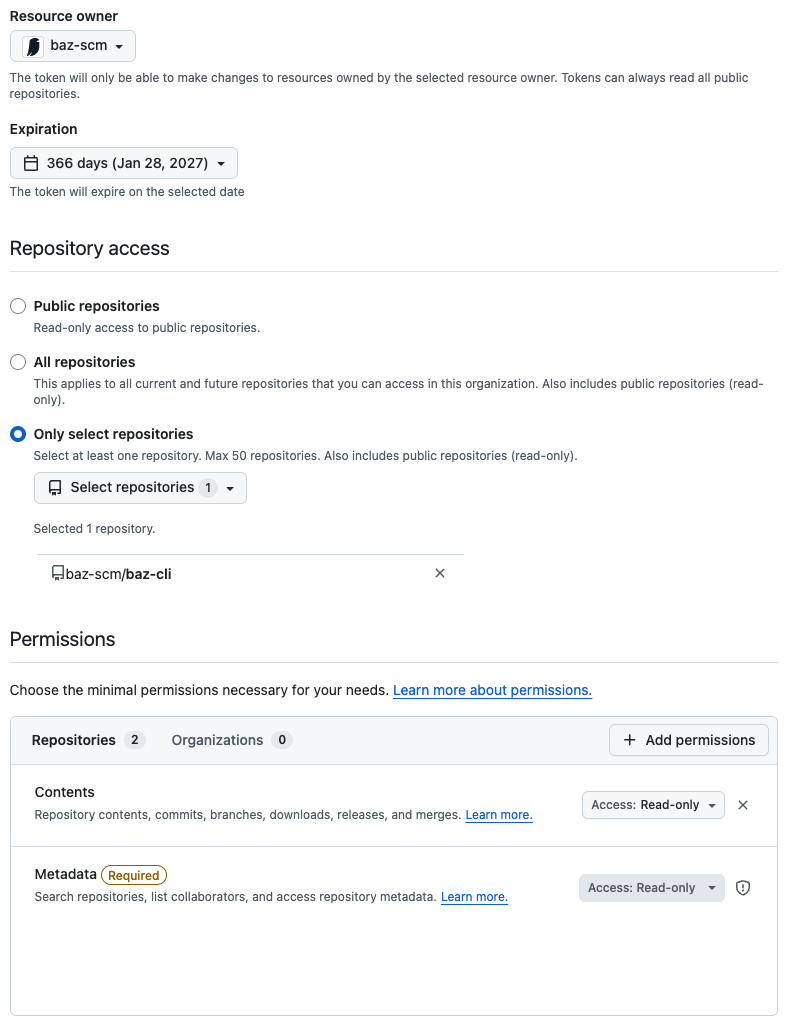

Which permissions should I give the GitHub PAT?

The PAT needs contents: read permissions to the repositories you integrate with baz. Important - you should first give this token access to the repositories you with to onboard. Only then go back to GitHub and integrate the relevant repositories with the baz-reviewer app. Example permissions:
